Three-lobe Roots blower-CYS150
Main Features
- Optimized Impeller Design: Featuring an innovative curved trajectory, the optimized design further enhances overall adiabatic efficiency and volumetric efficiency, resulting in excellent airflow and pressure characteristics.
- Low Vibration and Low Noise: The inlet and outlet shielding lines of the housing are cut in a spiral pattern, forming triangular inlet and outlet ports with the top line of the rotor. As the rotor rotates, these openings open sequentially, ensuring smoother operation and thereby reducing fan vibration and noise.
- Oil-Free Design: The structural design prevents bearing and gear lubricants from entering the housing, ensuring the working chamber remains oil-free. This guarantees clean air output and eliminates air pollution caused by oil mist.
- Compact Structure and Long Service Life: The compact design incorporates special bearings and oil seals, extending service life and facilitating maintenance and management.
- Stable Operation and Versatility: The impeller and shaft feature a split press-fit design, maintaining a minimal clearance between impellers to prevent contact. This ensures consistent fan performance and enables long-term continuous operation. While this product is generally used for air transport, it can be adapted to handle special gases such as coal gas, flammable, explosive, or toxic substances by simply changing the sealing configuration; please specify such requirements when placing an order.

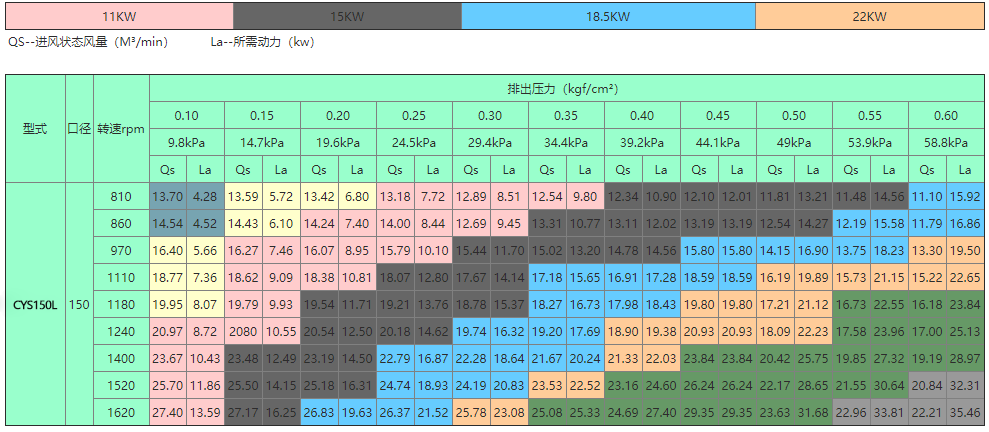

- Performance Range: Airflow: 0.44 ~ 56.97 m³/min Static Pressure: 9.8 ~ 58.8 kPa
